RACK MOUNT
About

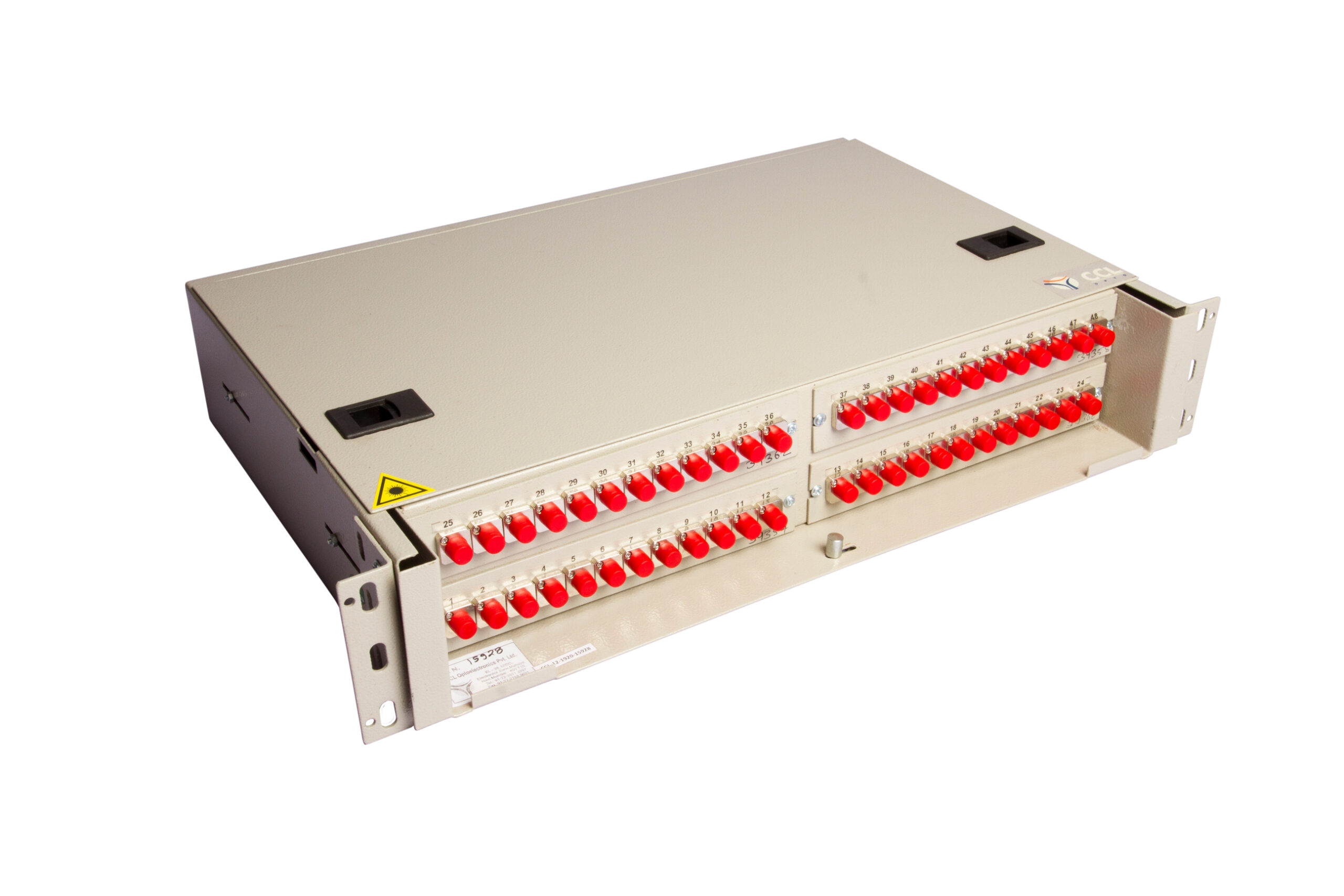

Rack Mount FMS suitable for 19” / 21” standard rack. This type of FMS has easy access for splicing and maintenance due to sliding design. Rack Mount FMS are available from 6 to 288 fibers configurations and can be customized as per customer requirements.
Sizing & Packing
| FMS Size | 1U | 2U | 3U | 4U | 6U |
|---|---|---|---|---|---|
| Dimensions (H x W x D) m | 45 x 437 x 300 | 89 x 437 x 300 | 134 x 437 x 300 | 180 x 437 x 300 | 260 x 437 x 300 |
| Adapter Type | Simplex & Duplex | Simplex & Duplex | Simplex | Simplex | Simplex |
| SC | C 6/12/24 & 48 | 48 & 96 | 48/72 | 96/144 | 288 |
| LC | C 6/12/24 & 48 | 48 & 96 | 48/72 | 96/144 | 288 |
| FC | C 6/12/24 & 48 | 48 & 96 | 48/72 | 96/144 | 288 |
| Access | Front with pull-in drawer | Front with pull-in drawer | Front with pull-in drawer | Front with pull-in drawer | Front with pull-in drawer |
| Cable Dia. (mm) | 8 to 18 | 8 to 18 | 8 to 18 | 8 to 20 | 8 to 20 |
| Pigtail Length (mtr.) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Number of Splice Trays | Upto 2 | Upto 6 | 6 | 8 | 12 |
